LMV331TP-TR Description

The 3PEAK INCORPORATED LMV331-393 are the most cost-effective solutions for applications where low-voltage operation, low power, space saving, and price are the primary specifications in circuit design for portable consumer products. The LMV331TP-TR is the single-comparator, the LMV393TP is the dual, and both are open-drain output comparators for maximum flexibility. The chips incorporate 3PEAK’s proprietary and patented design techniques to achieve the ultimate combination of high-speed (120ns high-to-low propagation delay) and low power consuming (40μA quiescent current per comparator). These comparators are optimized for low power 1.8V, single-supply applications with greater than rail-to-rail input operation, and also operate with ±0.9V to ±2.75V dual supplies. The input commonmode voltage range extends 200mV below ground and 200mV above supply, allowing both ground and supply sensing. The internal input hysteresis eliminates output switching due to internal input noise voltage, reducing current draw. The LMV331 single comparator is available in tiny SC70 package for space-conservative designs. All chips are specified for the temperature range of –40°C to +85°C.

3PEAK代理商|3PEAK供应商思瑞浦微电子科技(苏州)有限公司，简称3PEAK，是中国唯一一家专注于高性能模拟信号链的集成电路设计公司。它的愿景是成为行业领先的高性能模拟信号链产品的供应商。经过9年的发展积累，积累了大量积极设计的IP，并在计算放大器、视频滤波器、音频驱动、数模转换、模数转换、接口芯片等领域继续实现大规模生产。2016年，平均每月出货量超过3000万件，累计销售产品7亿件，超过1000人。3PEAK在计算放大器领域形成了中国最完整的产品系列，涵盖了纳安、零漂移、高压精度、低噪音、高带宽等系列。零漂移系列获得了EDN最佳线性模拟产品奖。

3PEAK作为一家专注于模拟信号链产品和积极研发的企业，获得了资本市场和众多优质客户的认可。公司产品被大量一线品牌客户采用，包括大江创新、海康威视、创维、哈曼、浙江大学中央控制等众多工业客户。3PEAK也是着名风险投资公司Waldenternational在中国投资的唯一一一家专注于模拟信号链的企业。我相信3PEAK未来会成为中国工业4积极贡献者和广大客户信赖的优质供应商。

LMV331TP-TR Features

 LMV331TP-TR Down to 1.8V Supply Voltage: 1.8V to 5.5V

 Low Supply Current: 40 μA per Channel Typ

 High-to-Low Propagation Delay: 120 ns Typ

 Internal Hysteresis Ensures Clean Switching

 Offset Voltage: ± 3.5 mV Maximum

 LMV331TP-TR Input Bias Current: 6 pA Typical

 Input Common-Mode Range Extends 200 mV

 No Phase Reversal for Overdriven Inputs

 Open-Drain Output for Maximum Flexibility

 Green, Space-Saving SC70 Package Available

LMV331TP-TR Applications

 Peak and Zero-crossing Detectors

 Threshold Detectors/Discriminators

 Sensing at Ground or Supply Line

 Logic Level Shifting or Translation

 Window Comparators

 IR Receivers

 Clock and Data Signal Restoration

 Telecom, Portable Communications

 Portable and Battery Powered Systems

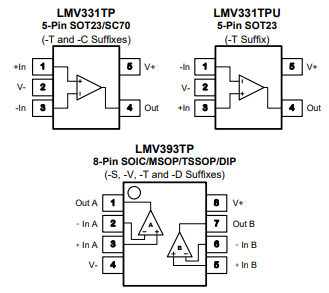

LMV331TP-TR Pin Configuration (Top View)

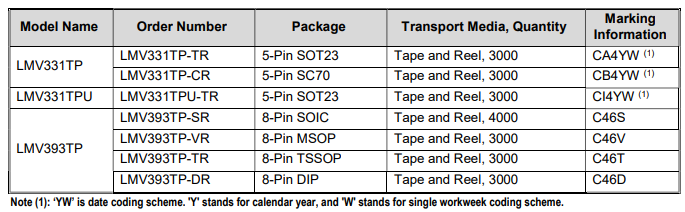

LMV331TP-TR Order Information

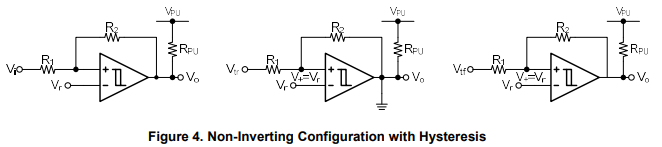

LMV331TP-TR Test Circuits and Waveforms
