LMV321TP-TR Description

LMV321TP/358TP/324TP are CMOS single, dual,and quad op-amps with low offset, stable highfrequency response, low power, low supply voltage,and rail-to-rail inputs and outputs. They incorporate3PEAK’s proprietary and patented designtechniques to achieve best in-class performanceamong all micro-power CMOS amplifiers.The LMV321TP/358TP/324TP are unity gain stablewith Any Capacitive Load with a Constant 1.27MHzgain-bandwidth product, 0.9V/μs slew rate whileconsuming only 40μA of supply current per amplifier.Analog trim and calibration routine reduces inputoffset voltage to below 3.5mV. Adaptive biasing anddynamic compensation enables the LMV321TP/358TP/324TP to achieve ‘THD+NOISE’ for 1kHzand 10kHz 2VPP signal at -105dB and -90dB,respectively. Beyond the rails input and rail-to-railoutput characteristics allow the full power-supplyvoltage to be used for signal range.This combination of features makes the LMV321TP/358TP/324TP superior among rail-to-rail input/output CMOS op amps in its power class. TheLMV321TP/358TP/324TP are ideal choices forbattery-powered applications because theyminimize errors due to power supply voltagevariations over the lifetime of the battery andmaintain high CMRR even for a rail-to-rail inputop-amp.The LMV321TP/358TP/324TP can be used ascost-effective plug-in replacements for manycommercially available op amps to reduce powerand improve input/output range and performance.

3PEAK代理商|3PEAK供应商思瑞浦微电子科技(苏州)有限公司，简称3PEAK，是中国唯一一家专注于高性能模拟信号链的集成电路设计公司。它的愿景是成为行业领先的高性能模拟信号链产品的供应商。经过9年的发展积累，积累了大量积极设计的IP，并在计算放大器、视频滤波器、音频驱动、数模转换、模数转换、接口芯片等领域继续实现大规模生产。2016年，平均每月出货量超过3000万件，累计销售产品7亿件，超过1000人。3PEAK在计算放大器领域形成了中国最完整的产品系列，涵盖了纳安、零漂移、高压精度、低噪音、高带宽等系列。零漂移系列获得了EDN最佳线性模拟产品奖。

3PEAK作为一家专注于模拟信号链产品和积极研发的企业，获得了资本市场和众多优质客户的认可。公司产品被大量一线品牌客户采用，包括大江创新、海康威视、创维、哈曼、浙江大学中央控制等众多工业客户。3PEAK也是着名风险投资公司Waldenternational在中国投资的唯一一一家专注于模拟信号链的企业。我相信3PEAK未来会成为中国工业4积极贡献者和广大客户信赖的优质供应商。

LMV321TP-TR Features

 Upgrade to LMV321/LMV358/LMV324 Family

 Stable 1.27MHz GBWP with Low IQ of Only 40μATypical per Amplifier

 0.9V/μs Slew Rate

 Unity Gain Stable for ANY CAPACITIVE Load

 Offset Voltage: 3.5mV Maximum

 Offset Voltage Temperature Drift: 0.6uV/°C

 Input Bias Current: 1pA Typical

 THD+Noise: -105dB at 1kHz, -90dB at 10kHz

 CMRR/PSRR: 110dB/102dB

 Beyond the Rails Input Common-Mode Range

 Outputs Swing to within 5mV Typical of each Rail

 No Phase Reversal for Overdriven Inputs

 No Crossover Distortion

 Drives 2kΩ Resistive Loads

 Single +2.1V to +6.0V Supply Voltage Range

 –40°C to 125°C Operation Range

 ESD Rating:Robust 8KV – HBM, 2KV – CDM and 500V – MM

 Green, Popular Type Package

LMV321TP-TR Applications

 Active Filters, ASIC Input or Output Amplifier

 Sensor Interface

 Smoke/Gas/Environment Sensors

 Portable Instruments and Mobile Device

 Audio Output

 PCMCIA Cards

 Battery or Solar Powered Systems

 Medical Equipment

 Piezo Electrical Transducer Amplifier

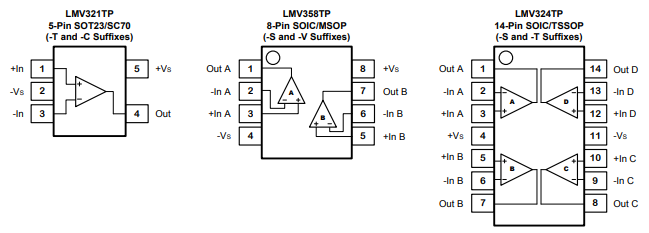

LMV321TP-TR Pin Configuration (Top View)

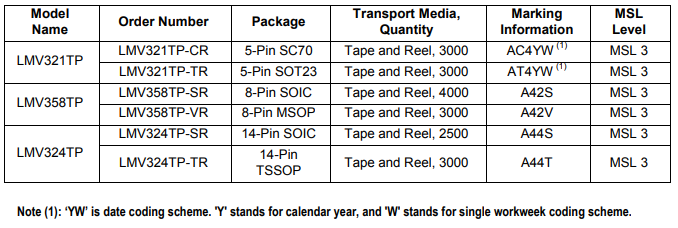

LMV321TP-TR Order Information

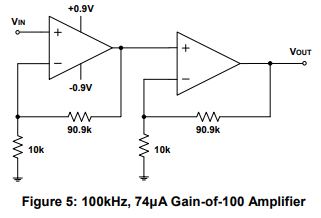

LMV321TP-TR Test Circuits and Waveforms
