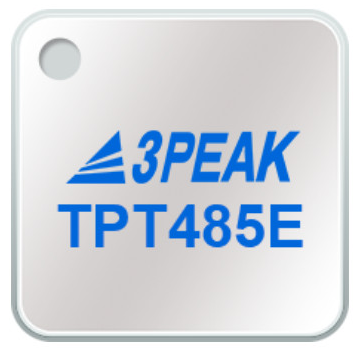

TPT485E-SO1R Description

The TPT485E is 4.5V~5.5V powered transceivers thatmeet the RS-485 and RS-422 standards for balancedcommunication. Driver outputs and receiver inputs areprotected against ±18 kV ESD strikes without latch-up.Transmitters in this family deliver exceptional differentialoutput voltages as 2.5V (min) in 5Vcc power supplier, intothe RS-485 required 54Ω load, for better noise immunity.These devices have very low bus currents so they presenta true “1/8 unit load” to the RS-485 bus. This allows up to256 transceivers on the network without using repeaters.Receiver (RX) inputs feature a “Full Fail-Safe” design,which ensures a logic high Rx output if Rx inputs arefloating, shorted, or on a terminated but undriven bus.The TPT485E is available in an SOP8 package, and ischaracterized from –40°C to 125°C.

3PEAK代理商|3PEAK供应商思瑞浦微电子科技(苏州)有限公司，简称3PEAK，是中国唯一一家专注于高性能模拟信号链的集成电路设计公司。它的愿景是成为行业领先的高性能模拟信号链产品的供应商。经过9年的发展积累，积累了大量积极设计的IP，并在计算放大器、视频滤波器、音频驱动、数模转换、模数转换、接口芯片等领域继续实现大规模生产。2016年，平均每月出货量超过3000万件，累计销售产品7亿件，超过1000人。3PEAK在计算放大器领域形成了中国最完整的产品系列，涵盖了纳安、零漂移、高压精度、低噪音、高带宽等系列。零漂移系列获得了EDN最佳线性模拟产品奖。

3PEAK作为一家专注于模拟信号链产品和积极研发的企业，获得了资本市场和众多优质客户的认可。公司产品被大量一线品牌客户采用，包括大江创新、海康威视、创维、哈曼、浙江大学中央控制等众多工业客户。3PEAK也是着名风险投资公司Waldenternational在中国投资的唯一一一家专注于模拟信号链的企业。我相信3PEAK未来会成为中国工业4积极贡献者和广大客户信赖的优质供应商。

TPT485E-SO1R Features

◼ Exceeds Requirements of EIA-485 Standard

◼ Data Rate: 500 kbps

◼ Support Failsafe function

◼ Low Power Consumption: < 1 µA StandbySupply Current

◼ Large Receiver Hysteresis: 60mV

◼ Up to 256 Nodes on a Bus (1/8 unit load)

◼ Wide Supply Voltage 4.5V to 5.5V

◼ SOP8 Package for Backward Compatibility

◼ Bus-Pin Protection:

⚫ ±18 kV HBM protection

⚫ ±12 kV IEC61000-4-2 Contact Discharge

TPT485E-SO1R Applications

⚫ E-Metering Networks

⚫ HVAC Systems

⚫ Video Surveillance Systems

⚫ DMX512-Networks

TPT485E-SO1R Pin Configuration (Top View)

TPT485E-SO1R Order Information

TPT485E-SO1R Function block or application schematic
