BS8116A-3 Description

The BS8116A-3 is a series of 2~16 key touch key devices which can detect human body contact using external touch pads. The high level of device integration enable applications to be implemented with a minimum number of external components. The BS81x series devices are equipped with serial or parallel interfaces to allow easy communication with an external MCU for device setup and for touch pin monitoring purposes. Special internal circuitry is also employed to ensure excellent power noise rejection to reduce the possibility of false detections, increasing the touch switch application reliability under adverse environmental conditions. With auto-calibration, low standby current, excellent resistance to voltage fluctuation and other features, this range of touch key devices provide a simple and effective means of implementing touch key operation in a wide variety of applications.

合泰代理商|Holtek代理商 Holtek合泰半导体公司于2002年成立，属于盛群半导体材料(中国台湾)，是Holtek合泰半导体公司的全资子公司，拥有自主研发和设计的精英团队，融硬件软件于一体，秉承艰苦奋斗精神，以高效率的方式为客人提供最佳的电力能源解决方案，立于客户角度，与行业市场对接，不断提升商品，提高商品的安全系数和顾客体验，努力为客人提供一种物美价廉的产品。

Holtek合泰半导体公司的市场营销战略始终是“单一模块(MCU)和单一模块(MCU)”这一发展趋势的关键，Holtek合泰产品类别包括通用型微处理器和专用微处理器(MCU)，包括触摸屏、健康检测、工业自动化/仪表、电子计算机的外接、主要应用于家电、汽车、安全防护、以及各种电池管理、LCD/LED驱动/操纵、RF通讯综合ic和各种外部元件，如各种感应器，Holtek合泰公司根据自己开发的整体实力，操纵产品接受订制，可以按照客户要求实现定制化开发设计。时间周期可以给客户更有力的一套解决方案，给客户多方位的服务项目，为消费者创造更美好的明天！

BS8116A-3 Features

• Operating voltage: 2.2V~5.5V

• Low standby current

• Auto-calibration

• Reliable touch detections

• Standby and normal operating modes

• Maximum key on duration time detection

• Adaptive voltage drop function

• Level Hold, selectable active level- low or high

• NMOS output with internal pull-high/CMOSDirect Output

• Both serial interface and parallel outputs

• Sensitivity adjustment using an external capacitor

• Minimal number of external components

BS8116A-3 Applications

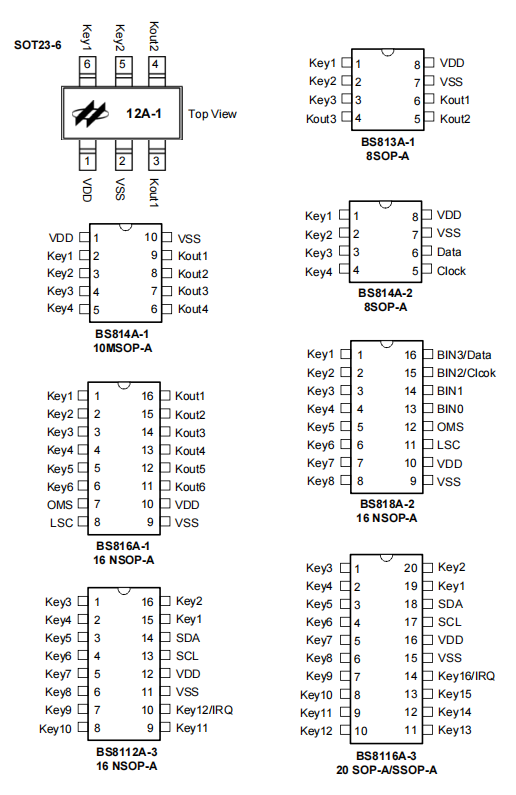

BS8116A-3 Pin Configuration (Top View)

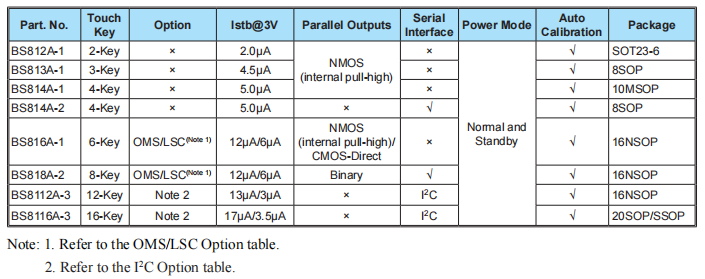

BS8116A-3 Order Information

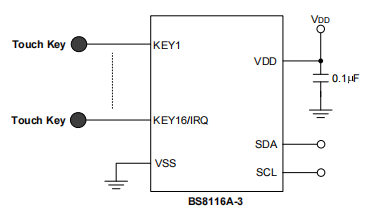

BS8116A-3 Function block or application schematic
