ADR421ARZ-REEL7 Description

The ADR42x are a series of ultraprecision, second generation eXtra implanted junction FET (XFET) voltage references featuring low noise, high accuracy, and excellent long-term stability in SOIC and MSOP footprints. Patented temperature drift curvature correction technique and XFET technology minimize nonlinearity of the voltage change with temperature. The XFET architecture offers superior accuracy and thermal hysteresis to the band gap references. It also operates at lower power and lower supply headroom than the buried Zener references. The superb noise and the stable and accurate characteristics of the ADR42x make them ideal for precision conversion applications such as optical networks and medical equipment. The ADR42x trim terminal can also be used to adjust the out-put voltage over a ±0.5% range without compromising any other performance. The ADR42x series voltage references offer two electrical grades and are specified over the extended industrial temperature range of −40°C to +125°C. Devices have 8-lead SOIC or 30% smaller, 8-lead MSOP packages.

ADI代理商|亚德诺代理商 ADI亚德诺公司始终将创新、业绩和卓越作为企业的文化支柱，并基此成长为该技术领域最持久高速增长的企业之一。ADI公司是业界认可的数据转换和信号处理技术全球领先的供应商，拥有遍布世界各地的60,000客户，涵盖了全部类型的电子设备制造商。作为领先业界40多年的高性能模拟集成电路（IC）制造商，ADI的产品用于模拟信号和数字信号处理领域。

ADI亚德诺公司总部设在美国马萨诸塞州诺伍德市，设计和制造基地遍布全球。ADI亚德诺公司被纳入标准普尔500指数（S&P 500 Index）。ADI在科技革命的推动下，传统能源大量消耗带来的全球气候变暖及资源稀缺问题，人口老龄化的加速对医疗行业提出的更高要求，无疑都是当今面临的挑战。ADI亚德诺公司以创新为基石，致力于通信基础设施、工业自动化、工业仪表、汽车电子以及医疗保健等领域的研发与投入，为解决各行各业面对的挑战，提供高性能的产品及解决方案。

ADR421ARZ-REEL7 Features

• Low noise (0.1 Hz to 10 Hz)

ADR420: 1.75 μV p-p

ADR421: 1.75 μV p-p

ADR423: 2.0 μV p-p

ADR425: 3.4 μV p-p

• Low temperature coefficient: 3 ppm/°C

• Long-term stability: 50 ppm/1000 hours

• Load regulation: 70 ppm/mA Line regulation: 35 ppm/V Low hysteresis: 40 ppm typical

• Wide operating range

ADR420: 4 V to 18 V

ADR421: 4.5 V to 18 V

ADR423: 5 V to 18 V

ADR425: 7 V to 18 V

• Quiescent current: 0.5 mA maximum

• High output current: 10 mA

• Wide temperature range: −40°C to +125°C

ADR421ARZ-REEL7 Applications

• Precision data acquisition systems

• High resolution converters

• Battery-powered instrumentation

• Portable medical instruments

• Industrial process control systems

• Precision instruments

• Optical network control circuits

ADR421ARZ-REEL7 Pin Configuration (Top View)

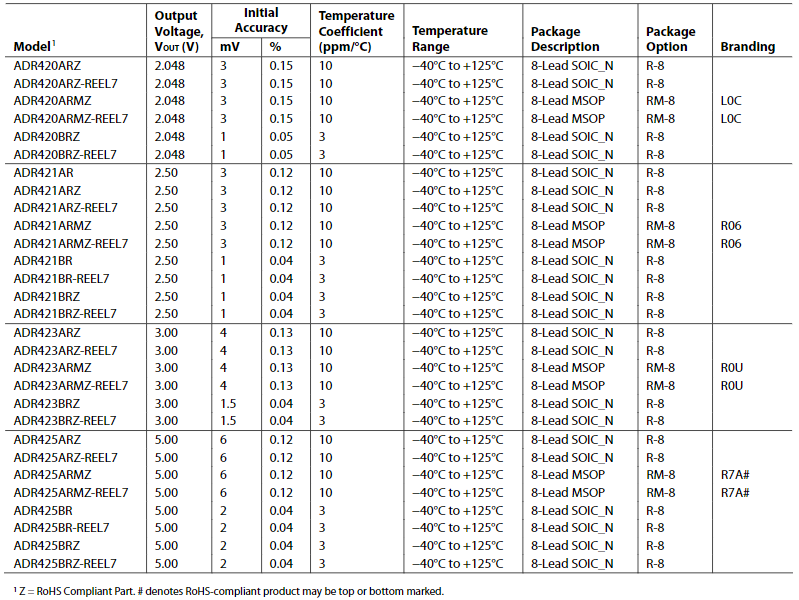

ADR421ARZ-REEL7 Order Information

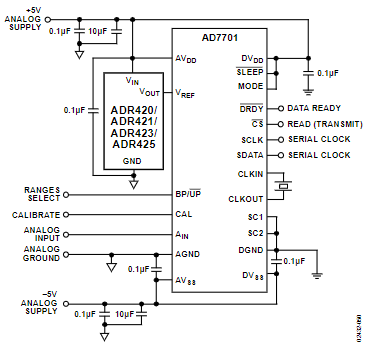

ADR421ARZ-REEL7 Function block or application schematic
