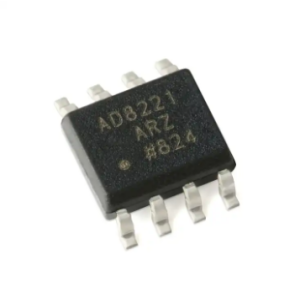

AD8221ARZ-R7 Description

The AD8221 is a gain programmable, high performance instrumentation amplifier that delivers the industry’s highest CMRR over frequency in its class. The CMRR of instrumentation amplifiers on the market today falls off at 200 Hz. In contrast, the AD8221 maintains a minimum CMRR of 80 dB to 10 kHz for all grades at G = 1. High CMRR over frequency allows the AD8221 to reject wideband interference and line harmonics, greatly simplifying filter requirements. Possible applications include precision data acquisition, biomedical analysis, and aerospace instrumentation.Performance is specified over the entire industrial temperature range of −40°C to +85°C for all grades. Furthermore, the AD8221 is operational from −40°C to +125°C

ADI代理商|亚德诺代理商 ADI亚德诺公司始终将创新、业绩和卓越作为企业的文化支柱，并基此成长为该技术领域最持久高速增长的企业之一。ADI公司是业界认可的数据转换和信号处理技术全球领先的供应商，拥有遍布世界各地的60,000客户，涵盖了全部类型的电子设备制造商。作为领先业界40多年的高性能模拟集成电路（IC）制造商，ADI的产品用于模拟信号和数字信号处理领域。

ADI亚德诺公司总部设在美国马萨诸塞州诺伍德市，设计和制造基地遍布全球。ADI亚德诺公司被纳入标准普尔500指数（S&P 500 Index）。ADI在科技革命的推动下，传统能源大量消耗带来的全球气候变暖及资源稀缺问题，人口老龄化的加速对医疗行业提出的更高要求，无疑都是当今面临的挑战。ADI亚德诺公司以创新为基石，致力于通信基础设施、工业自动化、工业仪表、汽车电子以及医疗保健等领域的研发与投入，为解决各行各业面对的挑战，提供高性能的产品及解决方案。

AD8221ARZ-R7 Features

♦ Easy to use

♦ Available in space-saving MSOP

♦ Gain set with 1 external resistor (gain range 1 to 1000)

♦ Wide power supply range: ±2.3 V to ±18 V

♦ Temperature range for specified performance:

−40°C to +85°C

♦ Operational up to 125°C1

♦ Excellent AC specifications

80dB minimum CMRR to 10kHz ( G = 1)

825 kHz, –3dB bandwidth (G = 1)

2V/μs slew rate

♦ Low noise

8nV/√Hz, @ 1 kHz, maximum input voltage noise

0.25μV p-p input noise (0.1Hz to 10Hz)

♦ High accuracy dc performance (AD8221BR)

90dB minimum CMRR (G = 1)

25μV maximum input offset voltage

0.3μV/°C maximum input offset drift

0.4 nA maximum input bias current

AD8221ARZ-R7 Applications

♦ Weigh scales

♦ Industrial process controls

♦ Bridge amplifiers

♦ Precision data acquisition systems

♦ Medical instrumentation

♦ Strain gages

♦ Transducer interfaces

AD8221ARZ-R7 Pin Configuration (Top View)

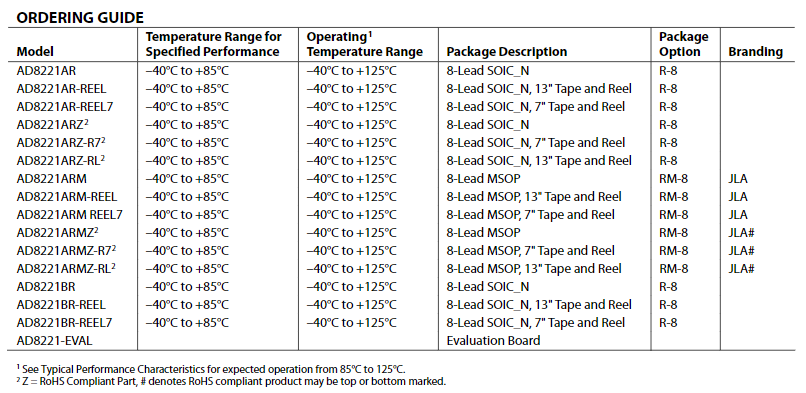

AD8221ARZ-R7 Order Information

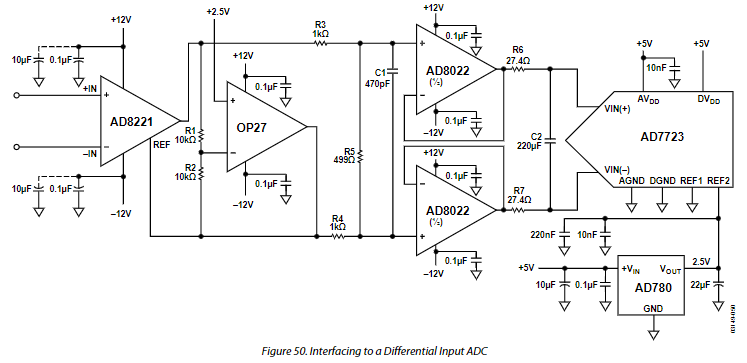

AD8221ARZ-R7 Function block or application schematic
