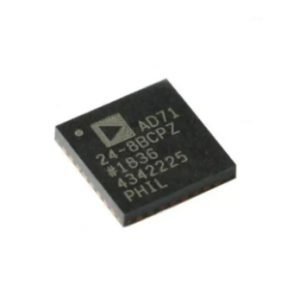

AD7124-8BCPZ Description

The AD7124-8 is a low-power, low-noise, complete analog front-end for high-precision measurement applications. The device has a built-in low-noise 24-bit sigma-delta analog-to-digital converter (ADC) that can be configured to provide 8 differential inputs or 15 single-ended or pseudo-differential inputs. The low on-chip noise level ensures that small signals can be fed directly into the ADC.One of the key advantages of the AD7124-8 is the flexibility of three integrated power modes available to the user. Power consumption, output data rate range, and root-mean-square noise can be customized with the selected power mode. The device also offers several filter options to ensure maximum flexibility for the user.

The AD7124-8 operates from a single 2.7 V to 3.6 V analog supply or a 1.8 V dual supply. The digital supply range is 1.65 V to 3.6 V. The device is rated from -40°C to +105°C. The AD7124-8 is available in a 32-pin LFCSP package.

ADI代理商|亚德诺代理商 ADI亚德诺公司始终将创新、业绩和卓越作为企业的文化支柱，并基此成长为该技术领域最持久高速增长的企业之一。ADI公司是业界认可的数据转换和信号处理技术全球领先的供应商，拥有遍布世界各地的60,000客户，涵盖了全部类型的电子设备制造商。作为领先业界40多年的高性能模拟集成电路（IC）制造商，ADI的产品用于模拟信号和数字信号处理领域。

ADI亚德诺公司总部设在美国马萨诸塞州诺伍德市，设计和制造基地遍布全球。ADI亚德诺公司被纳入标准普尔500指数（S&P 500 Index）。ADI在科技革命的推动下，传统能源大量消耗带来的全球气候变暖及资源稀缺问题，人口老龄化的加速对医疗行业提出的更高要求，无疑都是当今面临的挑战。ADI亚德诺公司以创新为基石，致力于通信基础设施、工业自动化、工业仪表、汽车电子以及医疗保健等领域的研发与投入，为解决各行各业面对的挑战，提供高性能的产品及解决方案。

AD7124-8BCPZ Features

♦ 3 power consumption modes.Root mean square (RMS) noise

Low power: 24 nV rms (1.17 SPS), gain=128 (255 µA typical)

Medium power: 20 nV rms (2.34 SPS), gain=128 (355 µA typical)

Full power: 23 nV rms (9.4 SPS), gain=128 (930 µA typical)

♦ Noise-free resolution up to 22 bits in all power modes (gain=1)

♦ Output Data Rate

Full power: 9.38 SPS to 19,200 SPS

Medium power: 2.34 SPS to 4,800 SPS

Low power: 1.17 SPS to 2400 SPS

♦ Rail-to-rail analog input (gain greater than 1)

♦ 50 Hz/60 Hz simultaneous rejection (25 SPS, single-cycle build-up)

♦ Diagnostic capability (contributes to Safety Integrity Level (SIL) certification)

♦ Crosspoint multiplexed analog inputs

8 differential/15 pseudo-differential inputs

♦ Programmable gain (1 to 128)

♦ Bandgap reference voltage source with 15 ppm/°C drift maximum (65 µA)

♦ Programmable matching excitation current

♦ Internal clock oscillator

♦ On-chip bias voltage generator

♦ Low-side power switch

♦ General-purpose outputs

AD7124-8BCPZ Applications

Temperature Measurement

Pressure Measurement

Industrial Process Control

Instrumentation

Intelligent Transmitters

AD7124-8BCPZ Pin Configuration (Top View)

AD7124-8BCPZ Order Information

AD7124-8BCPZ Function block or application schematic
